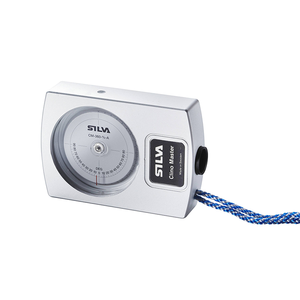

Clino Master - Heightmeter by SILVA

Condition: NEW

Be the first to write a review.

Code:73500-0000

The Silva ClinoMaster is a hand-held instrument for measuring vertical angles. ClinoMaster is available in two versions featuring different sighting systems : Lensatic or Prismatic, This is the Lensatic

The ClinoMaster Lensatic is the traditional Clinometer model featuring an aluminium protected sighting system for withstanding the toughest conditions.

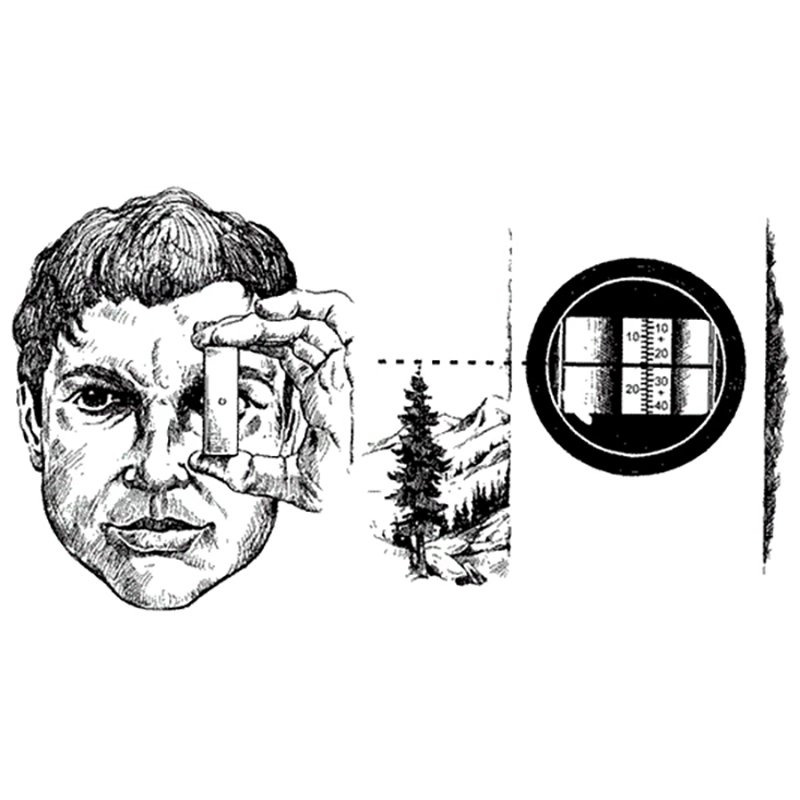

Sighting system: The ClinoMaster Lensatic is equipped with a parallax free glass lens magnification (10x) sighting system, integrated in the aluminium housing.
Capsule: Anti-static liquid filled for optimal dampening of the clinometer card.
Clinometer card: The ClinoMaster Lensatic is equipped with an aluminium clinometer card with a precision scale. Equipped with a top scale for direct readings on the top of the card. Sapphire jewel bearings are used, for friction free movement of the card allowing fast and accurate readings.
Accuracy: Max +-0.25° from true angle with precision sighting. Max +-1.0° from true angle with direct reading at the lubber line on top of the card.

Dimensions and weights: LA-models 75x53x16 mm. Weight:110 g.

7318860178771
73500-0000
CM 360% LA

Price: $199.00
